Dome Head

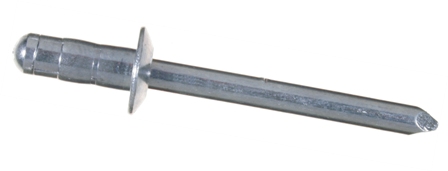

Steel/Steel U-Fix Rivet with Dome Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 5/32'' 4.0mm | 4.1 | US40110D | 11.0 | 1.4 - 5.0 | 1.20 | 8.10 | 2.73 | 200 | 240 | 6,000 |
| 3/16'' 4.8mm | 4.9 | US48103D | 10.3 | 1.2 - 4.8 | 1.75 | 9.80 | 3.38 | 367 | 340 | 5,000 |
| US48127D | 12.7 | 4.0 - 6.3 | 465 | 353 | 4,000 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
